SMT Type
-
LP/H127TGN a A c -3.5-1xXX XT 1.27mm Pin Header H:1.0 W:2.1 Single Row SMT Type
Specifications
- Current rating : 1A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -55°C to +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester,UL94V-0, NYLON 6T
- Plating : All Gold or Tin
-

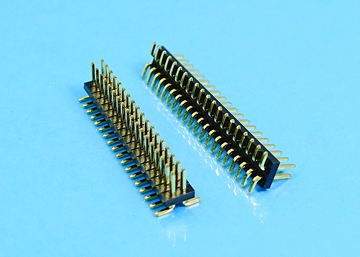

LP/H127TGN a A c - b -2xXX 1.27mm Pin Header H:1.0 W:3.4 Dual Row SMT Type
Specifications
- Current rating : 1A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -55°C to +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester,UL94V-0, NYLON 6T
- Plating : All Gold or Tin
-
LP/H127TGN a D c - b -2xXX 1.27mm Pin Header H:2.0 W:3.4 Dual Row SMT Type
Specifications
- Current rating : 1A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -55°C to +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester,UL94V-0, NYLON 6T
- Plating : All Gold or Tin
-
LP/H127TGN a A d A c -3.5-1xXX XT 1.27mm Pin Header H:1.0 W:2.1 Single Row Dual Base SMT Type
Specifications
- Current rating : 1A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -55°C to +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester,UL94V-0, NYLON 6T
- Plating : All Gold or Tin
-

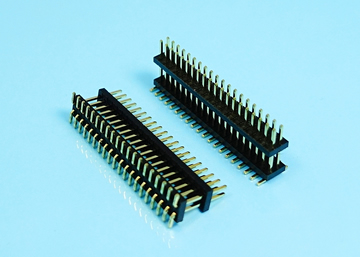

LP/H127TGN a A d A c - b -2xXX 1.27mm Pin Header H:1.0 W:3.4 Dual Row Dual Base SMT Type
Specifications
- Current rating : 1A
- Withstanding voltage : 500V AC
- Insulation resistance : 1000 Megohms Min.
- Operating Temperature : -55°C to +105°C (NYLON 6T)
Material
- Contact : Coppery Alloy
- Insulator : Polyester, UL94V-0, NYLON 6T
- Plating : All Gold or Tin
共計 5 項
