• MP 250 Series

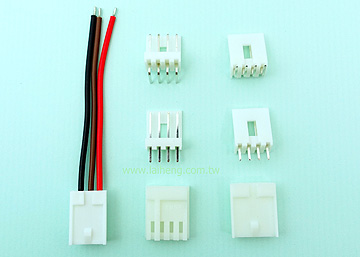

    MP 250 Series

    • Current Rating: 2A AC, DC
    • Voltage Rating: 250V AC,DC
    • Temperature range: -25℃ to + 85℃
    • Contact resistance: 20mΩ Max.
    • Insulation resistance: 1000MΩ Min.
    • Withstanding voltage: 800V AC/minute
    • Terminal Material: Brass/ Tin-plated
    • Material: Nylon 66, UL94V-0
  • 2.5mm Pitch 4 Pin Wafer, 180° DIP

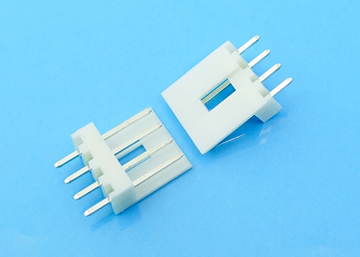

    LW-MP2442S-04 2.5mm Pitch 4 Pin Wafer, 180° DIP

    Specifications
    Electrical

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp.: -25°C ~ +85°C.
    • Insulation Resistance: 1000MΩ/ min.
    • Withstand Voltage: 800V AC/ min.
    • Contact Resistance: 20mΩ/ max.


    Material

    • Base Material: Nylon 66, UL94V-0
    • Contact pin Material: BRASS
    • Plating: 100u"Min.Tin Plating over all

    Inquiry Info. PDF

  • 2.5mm Pitch 4 Pin Wafer, 90° DIP

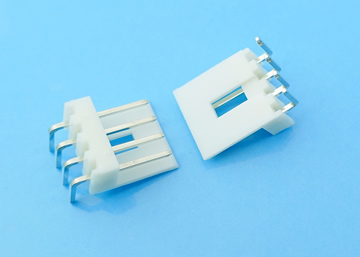

    LW-MP2442R-04 2.5mm Pitch 4 Pin Wafer, 90° DIP

    Specifications
    Electrical

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp.: -25°C ~ +85°C.
    • Insulation Resistance: 1000MΩ/ min.
    • Withstand Voltage: 800V AC/ min.
    • Contact Resistance: 20mΩ/ max.


    Material

    • Base Material: Nylon 66, UL94V-0
    • Contact pin Material: BRASS
    • Plating: 100u"Min.Tin Plating over all

    Inquiry Info. PDF

  • 2.5mm Pitch 4 pin Crimp Terminal Housing

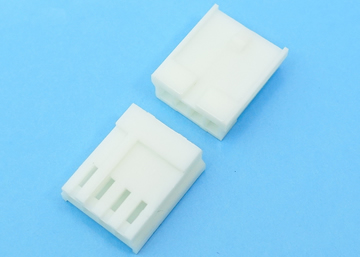

    LH-MPH2442-04 2.5mm Pitch 4 pin Crimp Terminal Housing

    Specifications

    • Current rating : 3.0A AC, DC.
    • Voltage rating : 250V AC, DC.
    • Temperature range : -25°C to +85 °C.
    • Contact resistance : 20mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute.
    • Material : Nylon 66, UL94V-0.

    Inquiry Info. PDF

共計 3 項
