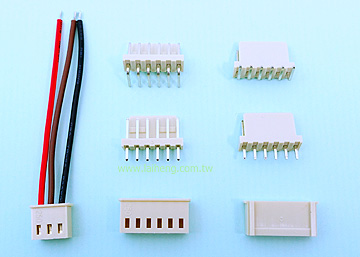

• DP 250 Series

    DP 250 Series

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp: -25℃ ~ + 85℃
    • Insulation Resistance: 1000MΩ / min.
    • Dielectric Withstanding Voltage: 800V AC/ min.
    • Contact Resistance: 10mΩ/ max.

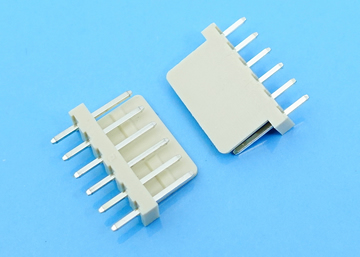

  • 2.5mm Pitch Single Row Wafer, 180° DIP

    LW-DP250S-XX 2.5mm Pitch Single Row Wafer, 180° DIP

    Specifications

    • Current rating : 2A AC,DC
    • Voltage rating : 250V AC,DC
    • Temperature range : -25°C to +85 °C
    • Conctact resistance : 20mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute
    • Terminal Material : Brass/ Tin-plated
    • Material : Nylon 66, UL94V-2

    Inquiry Info. PDF

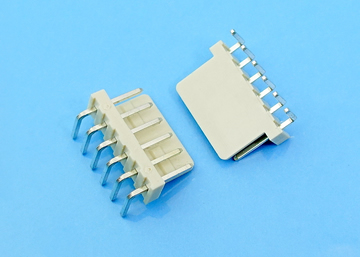

  • 2.5mm Pitch Single Row Wafer , 90° DIP

    LW-DP250R-XX 2.5mm Pitch Single Row Wafer , 90° DIP

    Specifications

    • Current rating : 2A AC,DC
    • Voltage rating : 250V AC,DC
    • Temperature range : -25°C to +85 °C
    • Conctact resistance : 20mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute
    • Terminal Material : Brass/ Tin-plated
    • Material : Nylon 66, UL94V-2

    Inquiry Info. PDF

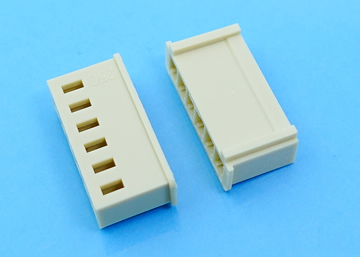

  • 2.5mm Pitch Single Row Crimp Terminal Housing

    LH-DP250-XX 2.5mm Pitch Single Row Crimp Terminal Housing

    Specifications

    • Current rating : 2A AC,DC
    • Voltage rating : 250V AC,DC
    • Temperature range : -25°C to +85 °C
    • Conctact resistance : 20mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute
    • Material : Nylon 66, UL94V-2

    Inquiry Info. PDF

共計 3 項
