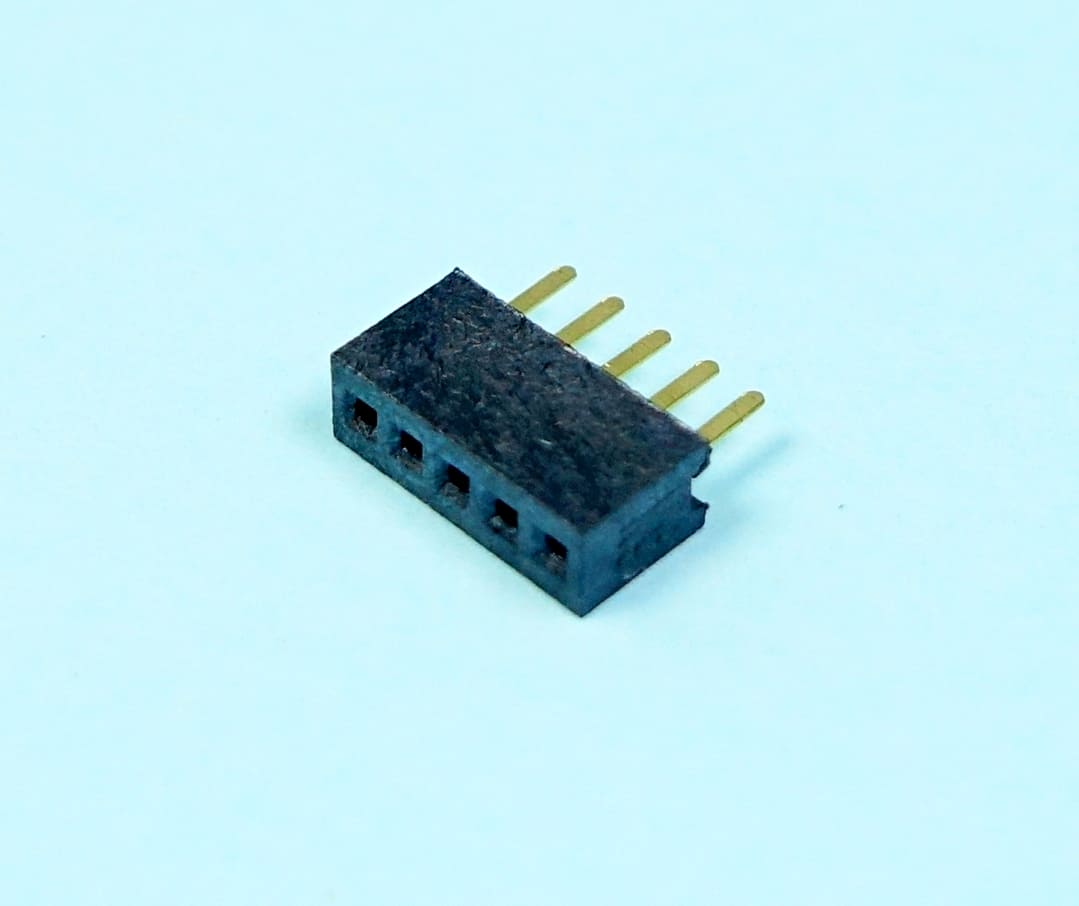

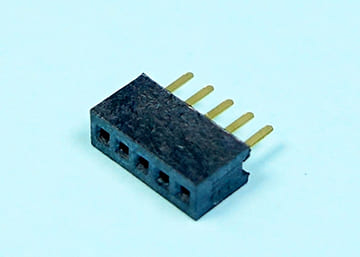

• LPCB127ASG X2.4-1xXX 1.27mm Female Header H:3.4 W:2.2 DIP:2.4 Straight Single Row

    LPCB127ASG X2.4-1xXX 1.27mm Female Header H:3.4 W:2.2 DIP:2.4 Straight Single Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ～ +105℃
    • Soldering Temperature: 260℃ for 3～5sec Max.
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon-6T/LCP (Black)
