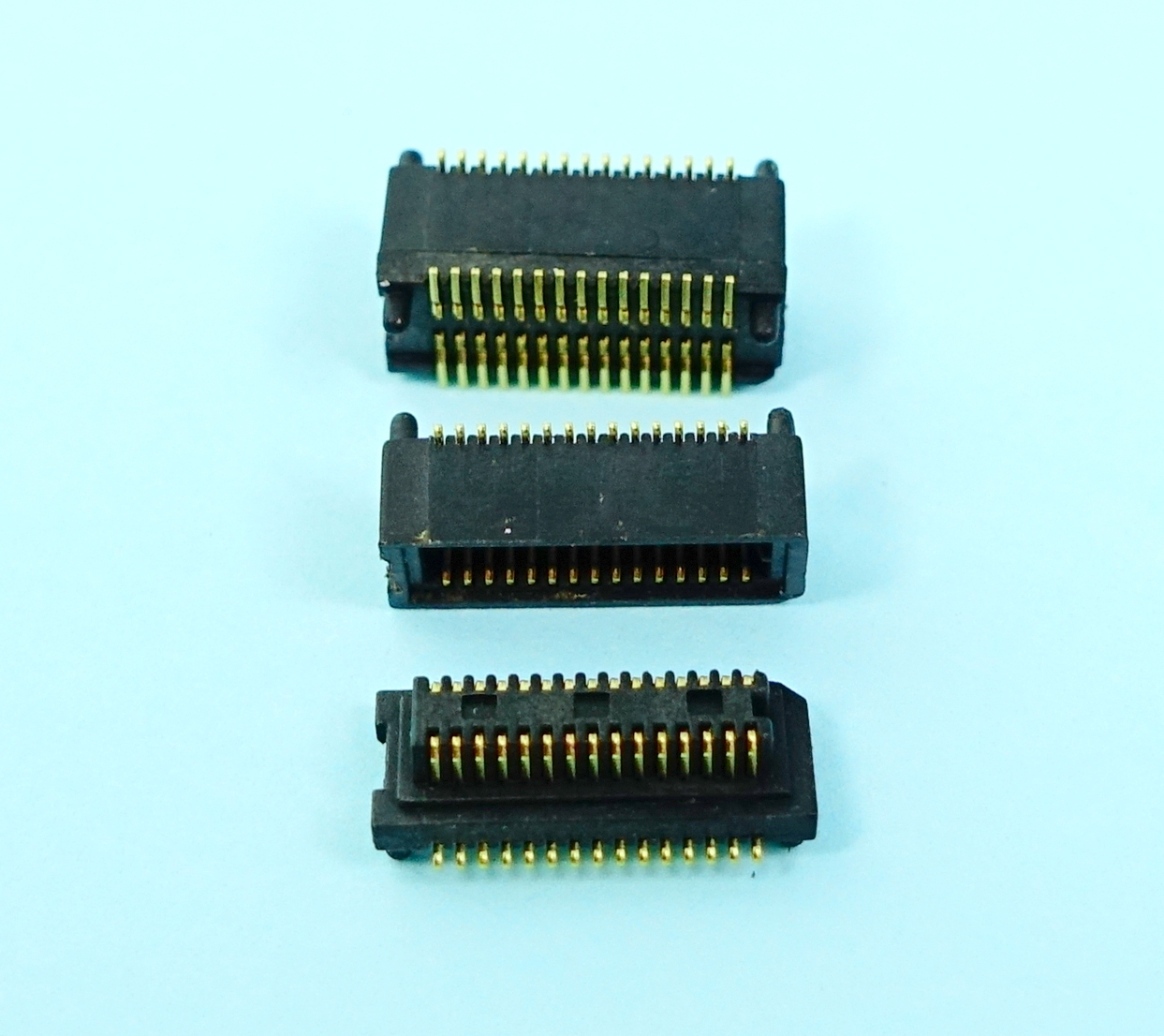

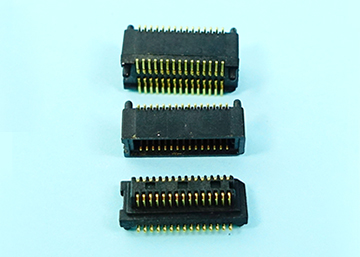

• LBTB-05MAxxxxx+LBTB-05FAxxxxx 0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=3.50mm,Pegs

    LBTB-05MAxxxxx+LBTB-05FAxxxxx 0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=3.50mm,Pegs

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts
