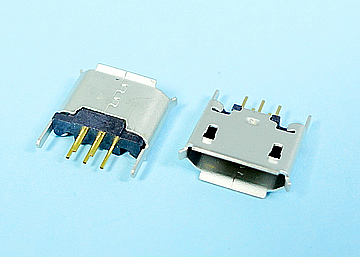

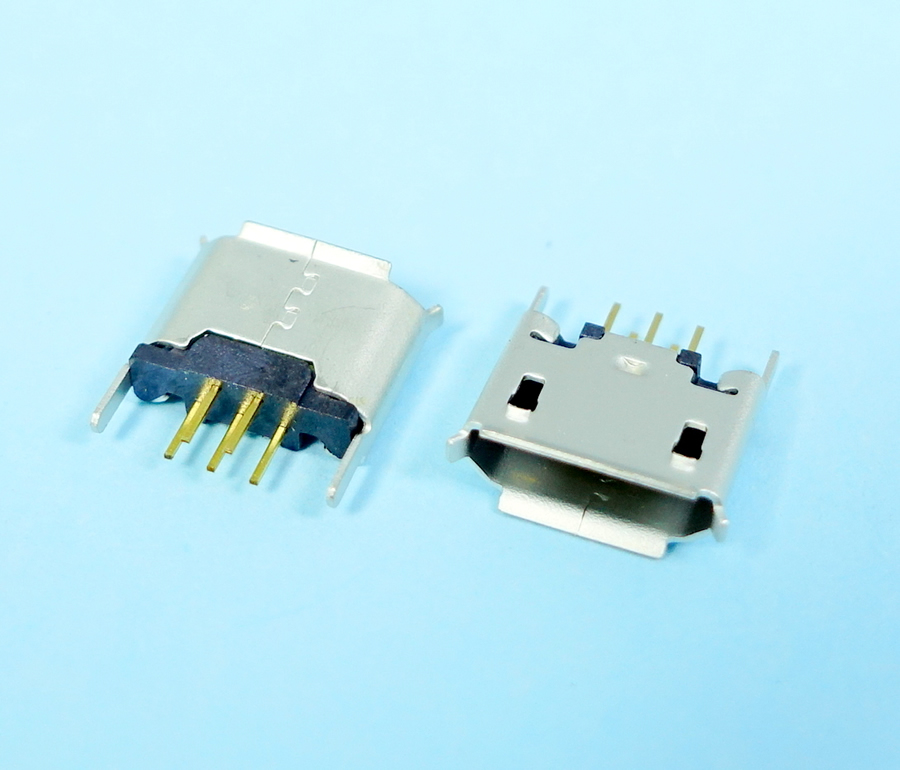

• LMCUB-22PMH0510123LX MICRO USB B Type 5Pin Female Vertical (180ﾟ) DIP

    LMCUB-22PMH0510123LX MICRO USB B Type 5Pin Female Vertical (180ﾟ) DIP

    Specifications

    • HOUSING: LCP+30% G.F BLACK (UL 94V-0)
    • SHELL: SUS201, MATTE TIN PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED OVER ALL
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 500V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 1000M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~+105°C
