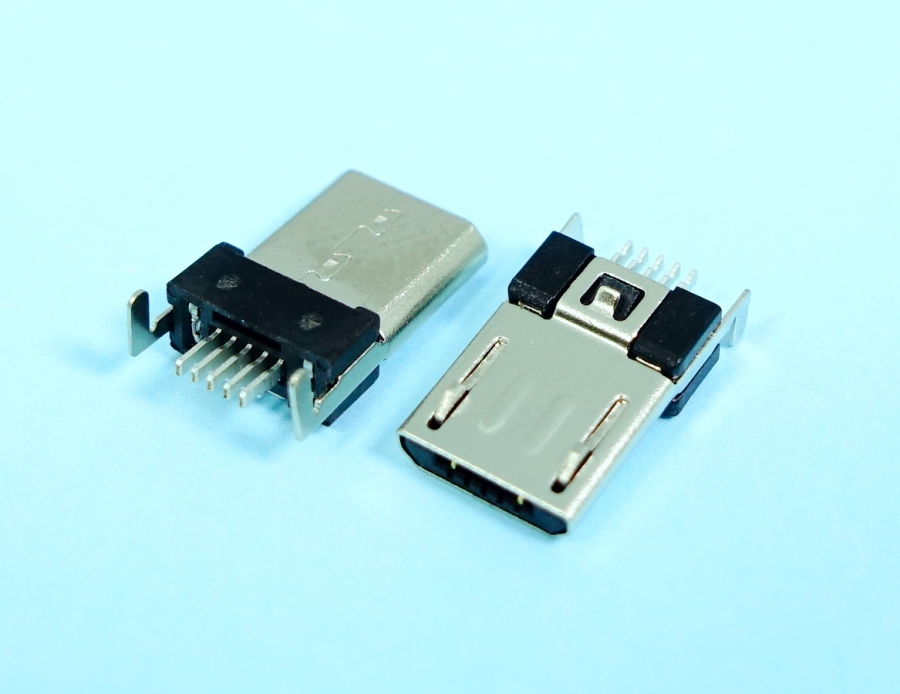

LMCUB-22TCH051T12BL1 MICRO USB 5Pin Male Vertical SMT Shell DIP (CUT Board Type 3)

Specifications

• HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
• SHELL: STAINNESS STELL, NICKEL PLATING
• TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA TIN PLATING ON SOLDER TAIL
• CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1.5). OTHER 1 AMP MAX
• DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
• CONTACT RESISTANCE: 30m OHMS MAX
• INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
• OPERATION TEMPERATURE: -25°C~+85°C
