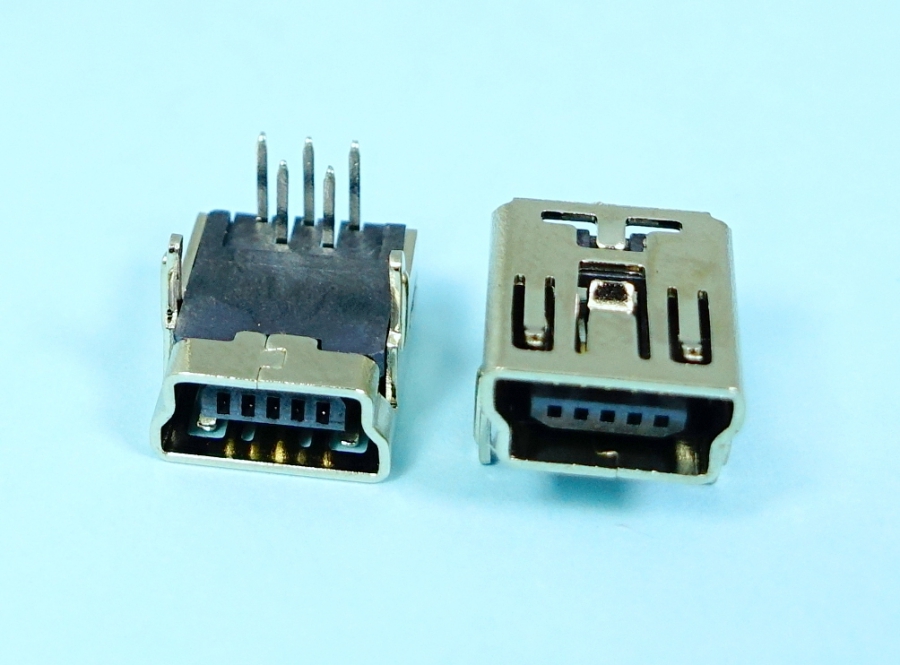

LMNUB-22MHH051T137X MINI USB B Type 5Pin Female Right Angle (90ﾟ) DIP

Specifications

• HOUSING: HI-TEMP PLASTIC (UL 94V-0)
• SHELL: COPPER ALLOY OR SPCC, NICKEL PLATING
• TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA, TIN PLATED ON SOLDER TAIL
• CURRENT RATING: 1 AMP MAX
• DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
• CONTACT RESISTANCE: 50m OHMS MAX
• INSULATION RESISTANCE: 100M OHMS MIN AT DC 100V
• OPERATION TEMPERATURE: -25°C~+85°C
