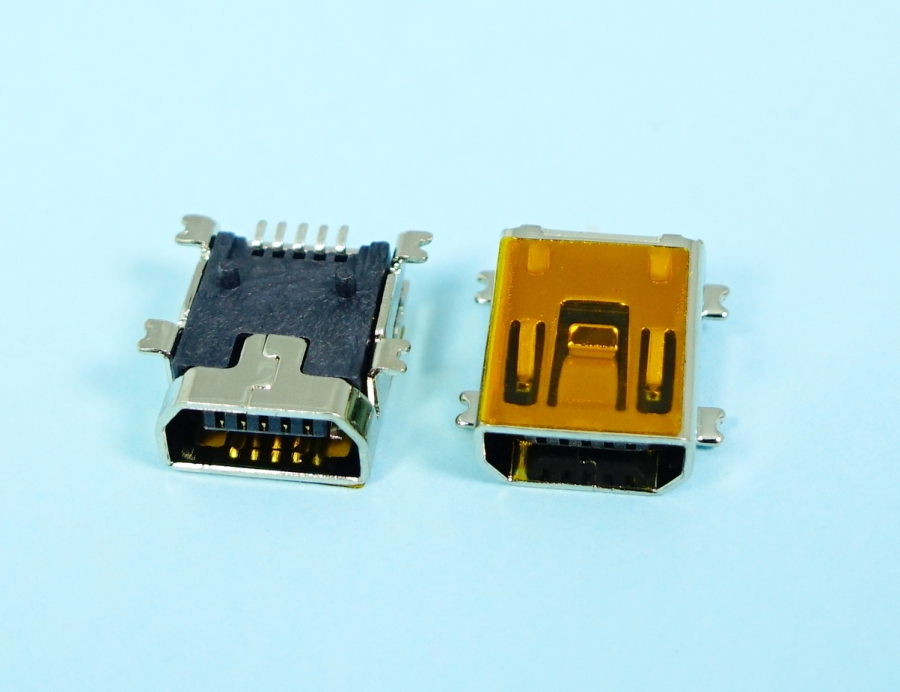

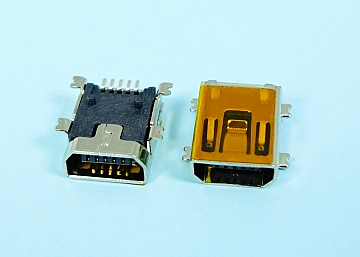

LMNUB-22MCH051T128L MINI USB A/B Type 5Pin Female SMT With Post &Mylar

Specifications

• HOUSING: LCP+30%G.F, UL94V-0,BLACK
• SHELL: COPPER ALLOY, NICKEL PLATING
• TERMINAL: COPPER ALLOY, NICKEL PLATED UNDER OVER ALL. GOLD PLATED ON CONTACT AREA, TIN PLATED ON SOLDER TAIL
• MYLAR: POLYIMIDE TAPE
• CURRENT RATING: 1 AMP MAX
• DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
• CONTACT RESISTANCE: 50m OHMS MAX
• INSULATION RESISTANCE: 100M OHMS MIN AT DC 100V
• OPERATION TEMPERATURE: -25°C~ +85°C
