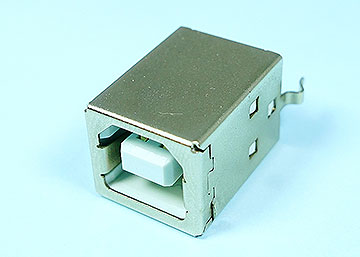

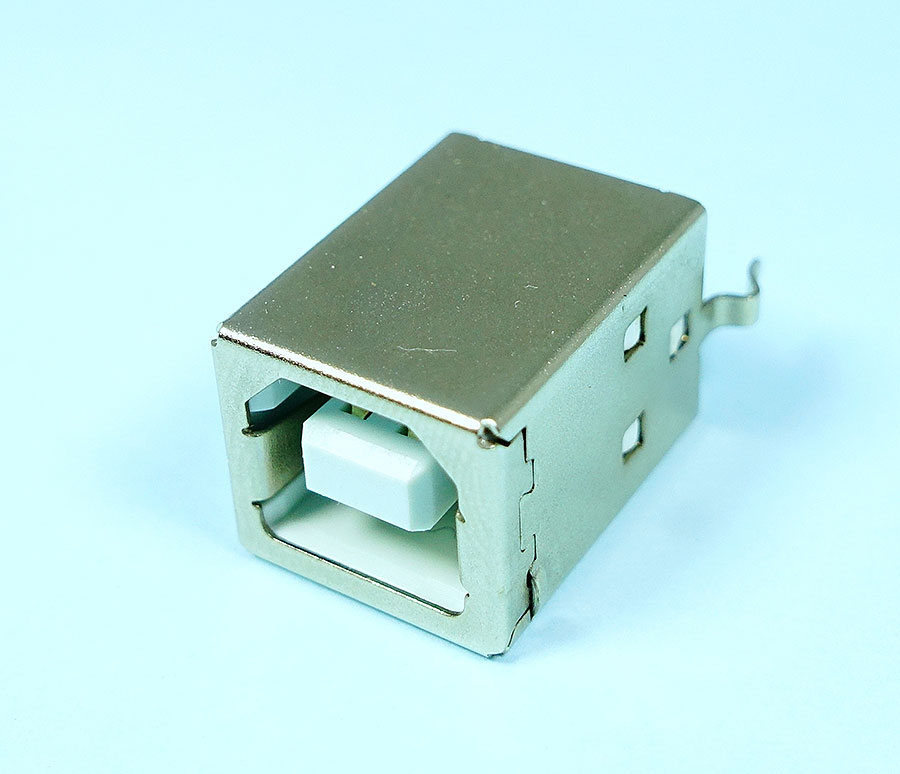

LUB-22BA041T114L2 USB B Type 4Pin Female Board Side DIP 180° (L=16.1)

Specifications

• Current Rating: 1 amp max
• Dielectric Withstanding: 1000v ac for one minute
• Contact Resistance: 50m ohms max
• Insulation Resistance: 100m ohms min at dc 100V
• Operation Temperature: -25°C～+85°C
  　

Materials

• Housing:  HI-TEMP PLASTIC
• COLOR:  WHITE(UL 94V-0)
• Shell: COPPER ALLOY OR SPCC, NICKEL PLATING
• TERMINAL:  COPPER ALLOY, GOLD PLATED ON CONTACT AREA,TIN PLATING ON SOLDER TAIL
