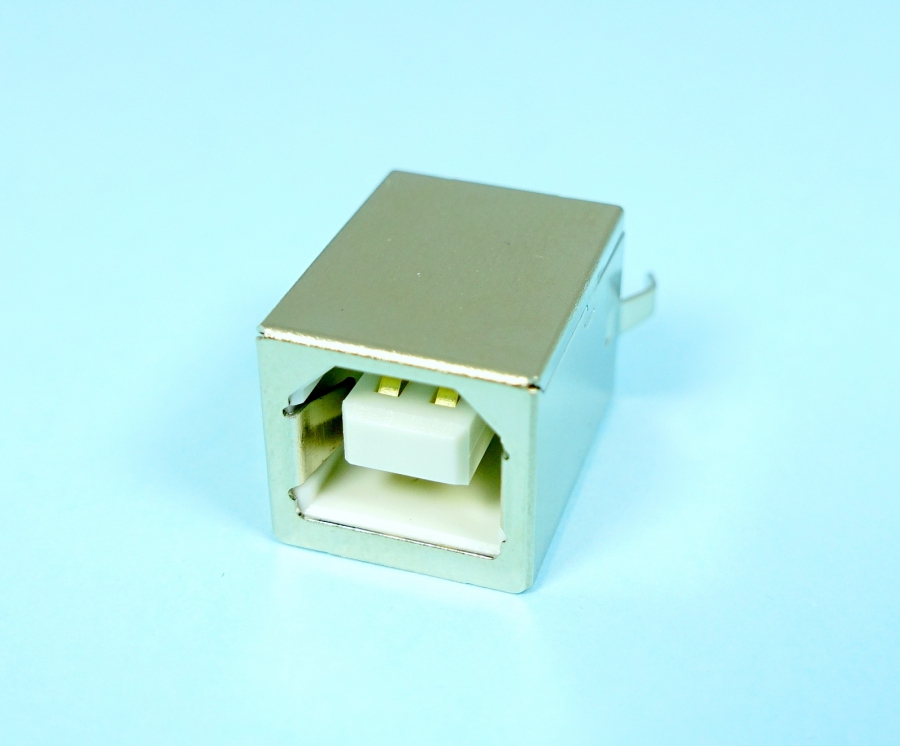

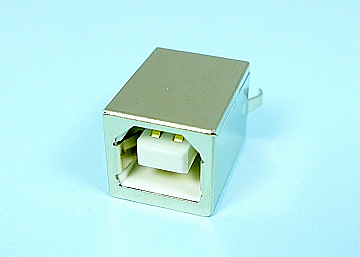

• LUB-KS001KBNWL USB B Type 4Pin Female Board Side DIP 180°

    LUB-KS001KBNWL USB B Type 4Pin Female Board Side DIP 180°

    Specifications

    • Contact Resistance: 30m Ohm Max.
    • Insulation Resistance: 1000M Ohm Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 750V AC (rms) for 1 Minute(Rev. 1.1)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    PDF
