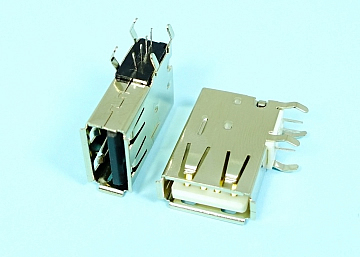

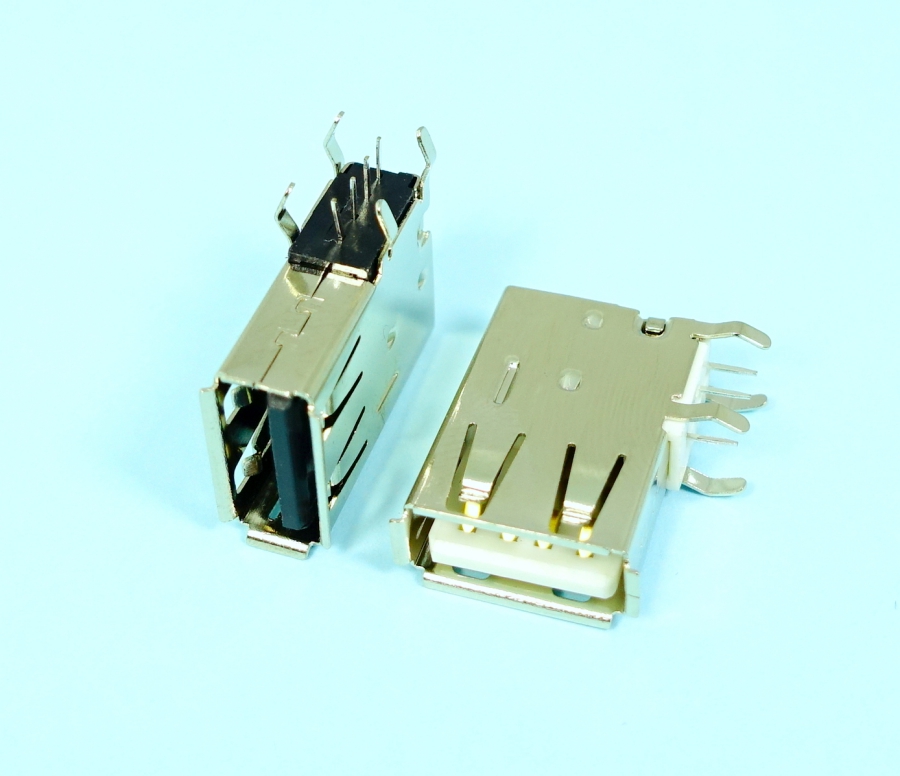

LUB-22AU041T117LX12 USB A Type 4Pin Female Board UPRIGHT 90°

Specifications

• Current Rating: 1 amp max
• Dielectric Withstanding: 500v ac for one minute
• Contact Resistance: 30m ohms max
• Insulation Resistance: 1000m ohms min at dc 500V
• Operation Temperature: -40°C～+105°C


Materials

• Housing: thermoplastics lcp/ pbt (ul 94v-0)
• Shell: copper alloy, nickel plating / spcc
• Terminal:  copper alloy, gold plated on contact area tin plating on solder tail
