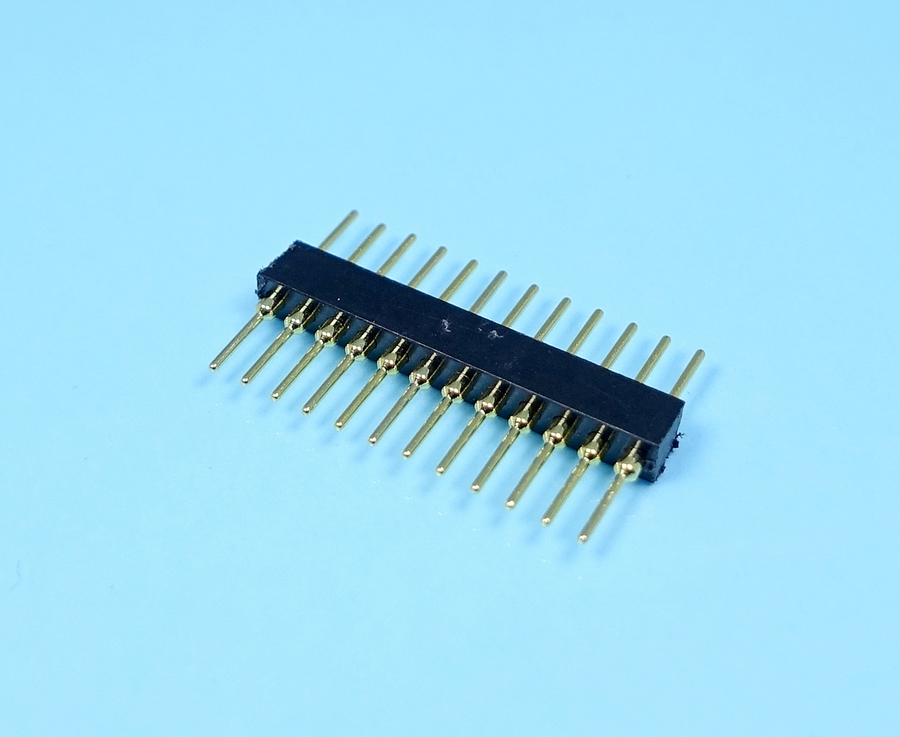

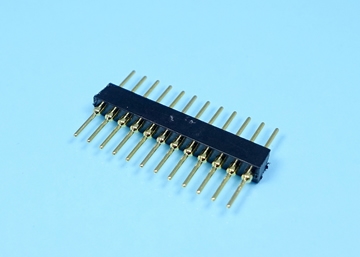

LSIP1778M-1xXXGO 1.778mm Machined Pin Header Single Row (Gold Plated)

Specifications


Material

• Insulator body(housing): PBT (black /UL 94V-0)
• Pin :Brass, machined,
• Plating:Gold plated:>40u"nickel/G-F(0.4~1u" )


Electrical:

• Current rating: 3 Amps/contact max
• Operating :60 Veff
• Insulation resistance:>1000 MΩ at =100V


Mechanical:

• Operating temperature: Gold platde:-55°C to+
  (continous) Tin plated: -40°C to+105°C
• Soldering temperature: + 260°C ,10s max
