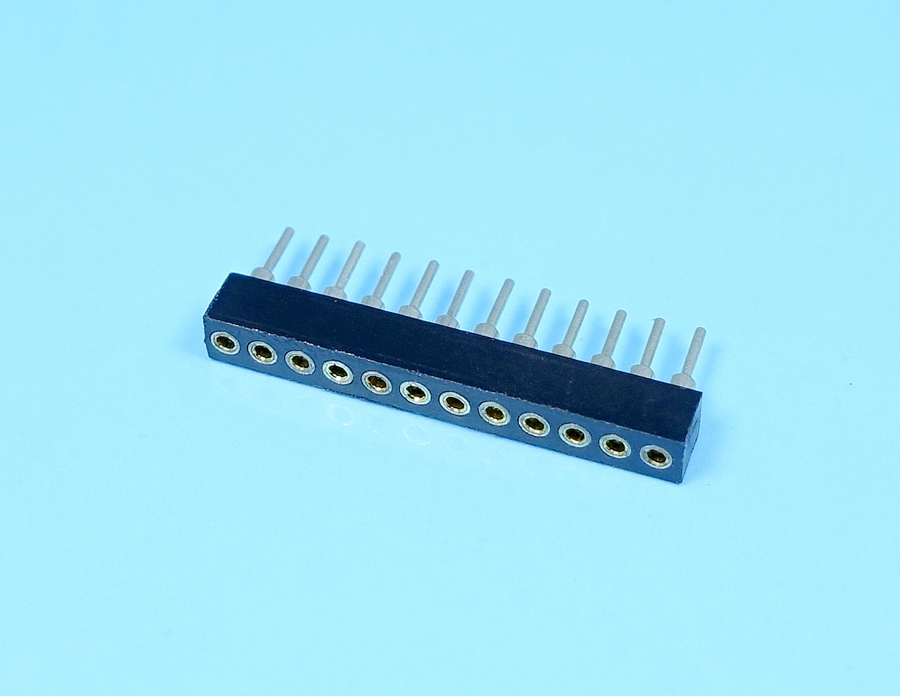

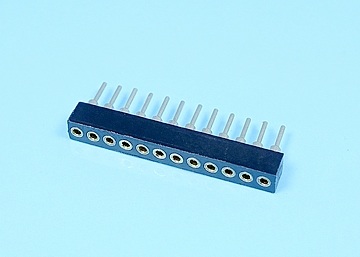

LSIP1788-1xXX 1.778mm SIP SOCKET Single Row Round Pin

Specifications


Material

• Insulator body(housing):PBT black/UL94-V0)
• Pin(outer sleeve):Brass,machined,
• Tin plated:nickel plated/150u"Tin plated
• Clip(6 finger):Beryllium copper
• Gold plated:.nickel plated/full Gold-flashed


Electrical:

• Current rating: 3 Amps /contact Max
• Contact resistance: 20mΩ/ contact Max
• Insulation resistance: >1000 MΩ at V=100 V Min
• Operating: 60V Ac/Dc


Mechanical:

• Operating temperature:
• Tin plated : -40°C to +105°C
• Soldering temperature: + 240° C 10s max
