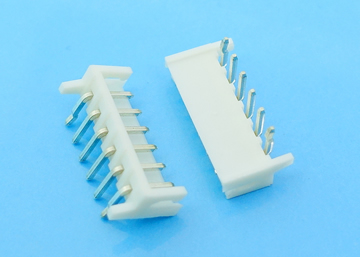

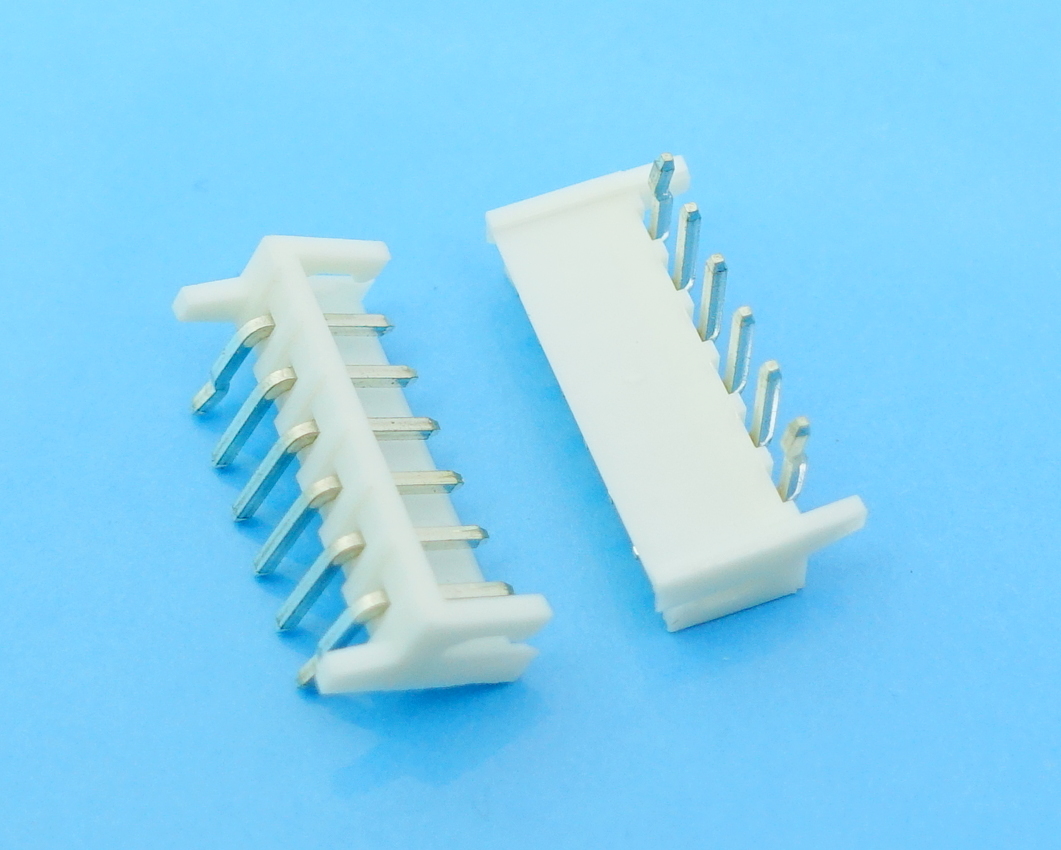

Product Wire To Board Connectors Wire to Board Connectors 2.5mm Pitch EH 250 Series LW-EH250R-XX 2.5mm Pitch Single Row Wafer , 90° DIP SpecificationsElectrical Current Rating: 3A AC, DC Voltage Rating: 250V AC/ max. Operating Temp.: -25°C ~ +85°C Insulation Resistance: 1000MΩ/ min. Dielectric Withstanding Voltage: 800V AC/ min. Contact Resistance: 10mΩ/ max. Material Terminal Material: Brass, Copper-Undercoated, Tin- plated Material: Nylon 66, UL94V-0 PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
