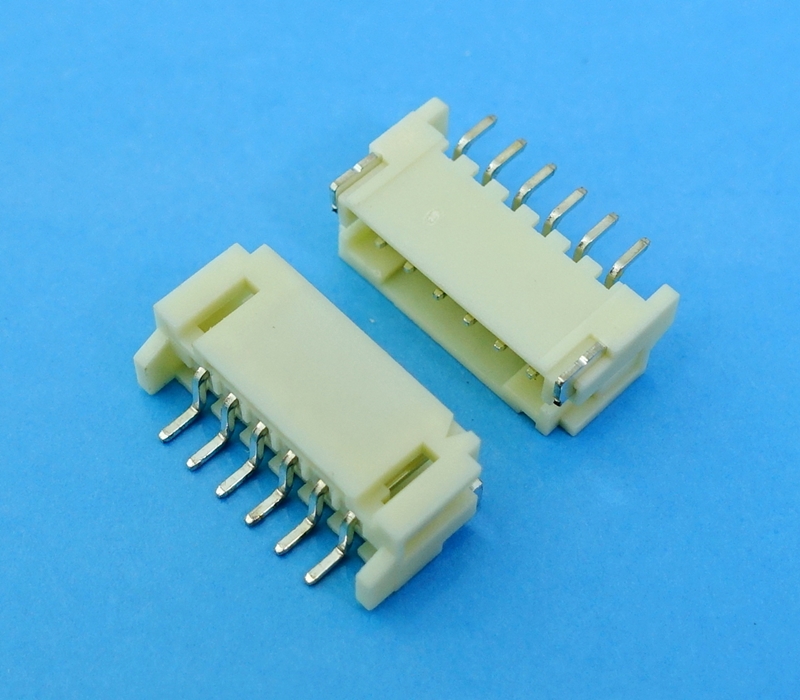

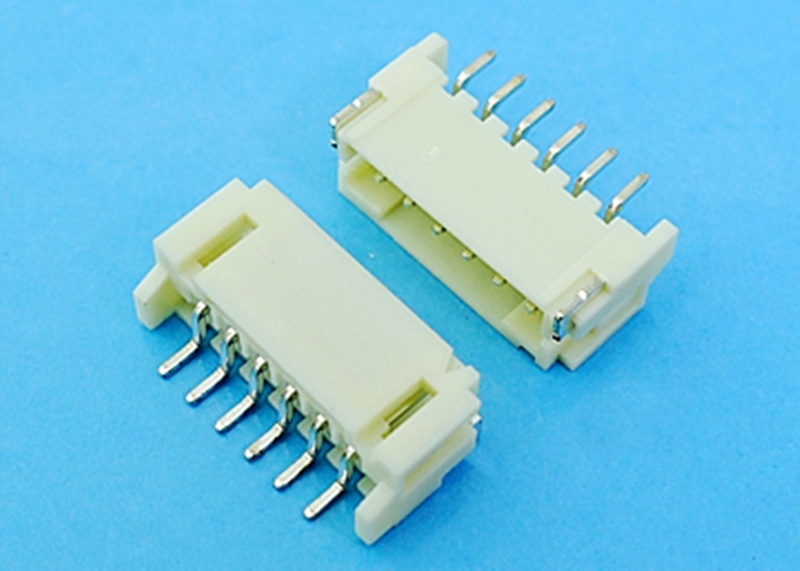

LW-PH200R- XX-S 2.0mm Pitch Single Row Wafer , 90° SMT

Specifications
Electrical

• Voltage Rating: 100V AC, DC
• Current Rating: 2A AC, DC
• Withstand Voltage: 800V AC/ min
• Insulation Resistance: 1000MΩ/ min
• Temperature Range: -40°C ~ +85°C


Material

• Wafer: High Temperature Plastic Nylon 6T UL94V-0
• Pin: High Strength Brass With Tin Over Nickel Plated
• Applicable PC Board Thickness: 0.8 ~ 1.6mm
• Contact Resistance: Initial Value / 10mΩ max.
• After environmental testing 20mΩ max.
