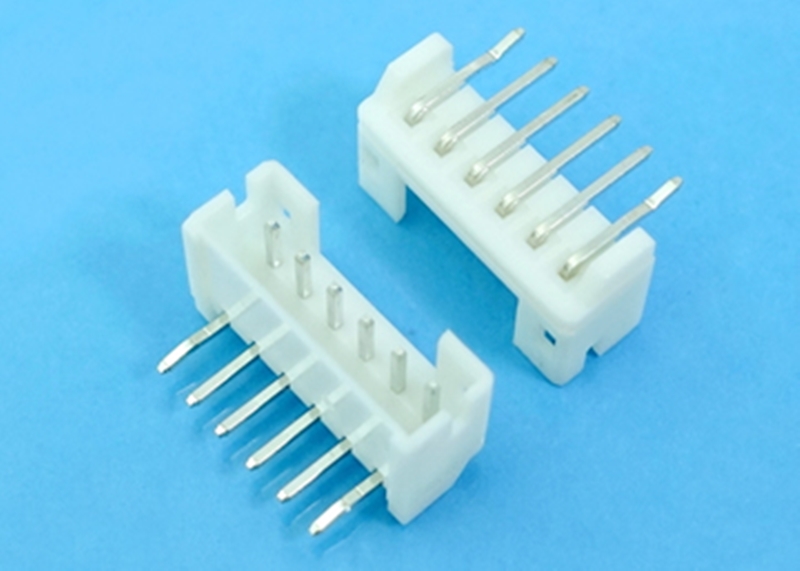

• LW-PH200R- XX X 2.0mm Pitch Single Row Wafer ,90° DIP

    LW-PH200R- XX X 2.0mm Pitch Single Row Wafer ,90° DIP

    Specifications
    Electrical

    • Voltage Rating: 100V(AC)
    • Current Rating: 2A
    • Contact Resistance: 20m Ω max.
    • Dielectric Withstandeing Voltage: 800V AC/1min.
    • Insulation Resistance: 1000M Ω max.


    Material

    • Circuits: 2~16
    • Insulator: Nylon 66 UL 94V-0
    • Color: White
    • Contact: Brass 0.50mm(0.20") Square Pin
    • Plating: Tin Plated
    • Temperature Range: -25° C~+85° C
    • Applicable PC Board Thickness: 0.8 to 1.6mm
