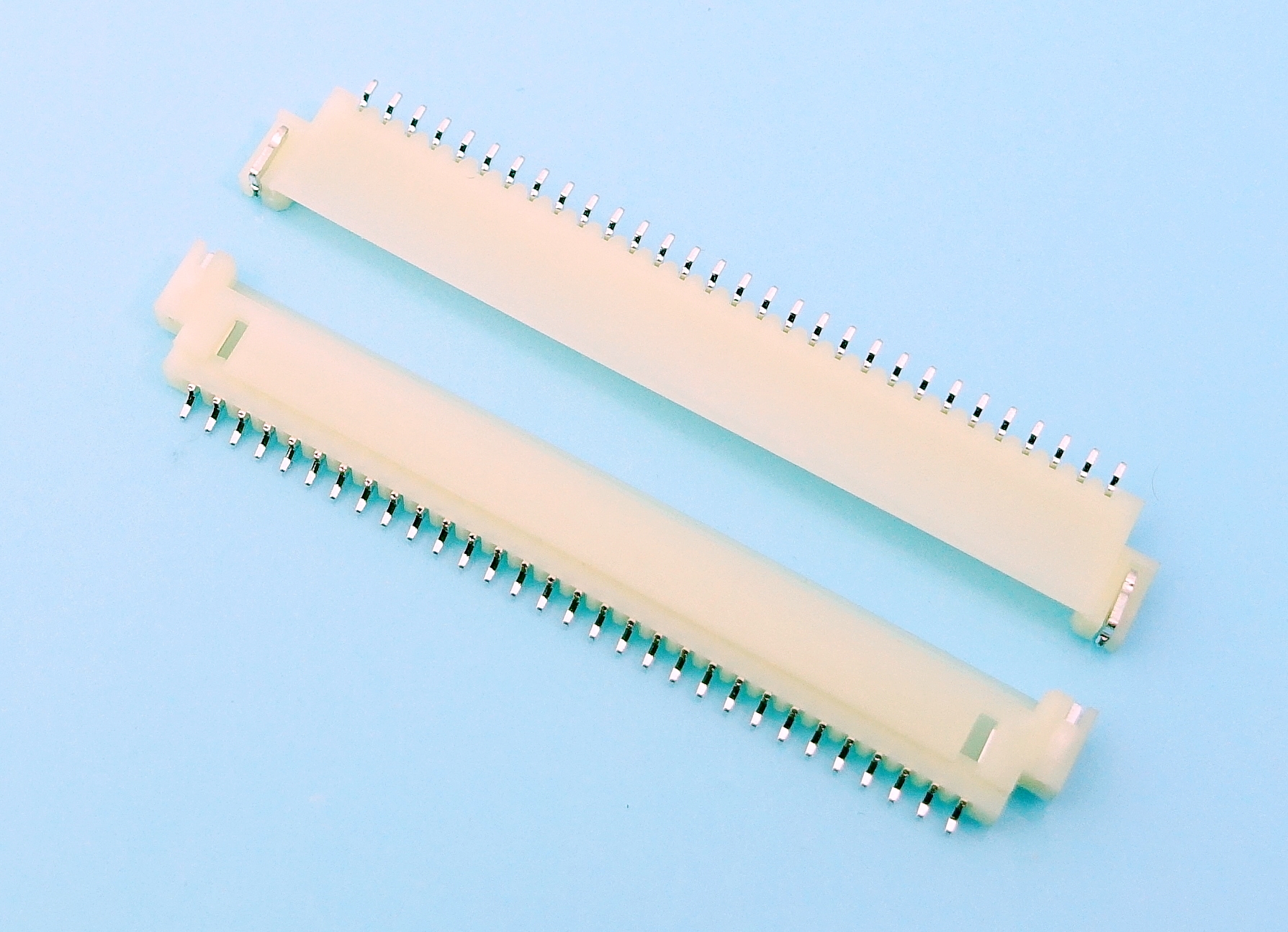

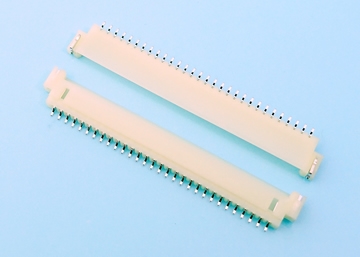

• LW-DF14R-XX-S 1.25 mm Pitch Single Row Wafer, 90° SMT ,

    LW-DF14R-XX-S 1.25 mm Pitch Single Row Wafer, 90° SMT ,

    Specifications


    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25°C ~ +85°C.
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Pin Material: Phosphor Bronze, Tin-plated.
    • Solder Tabs: Brass, Tin-plated.
    • Material: Nylon 6T, UL94V-0.

    PDF
