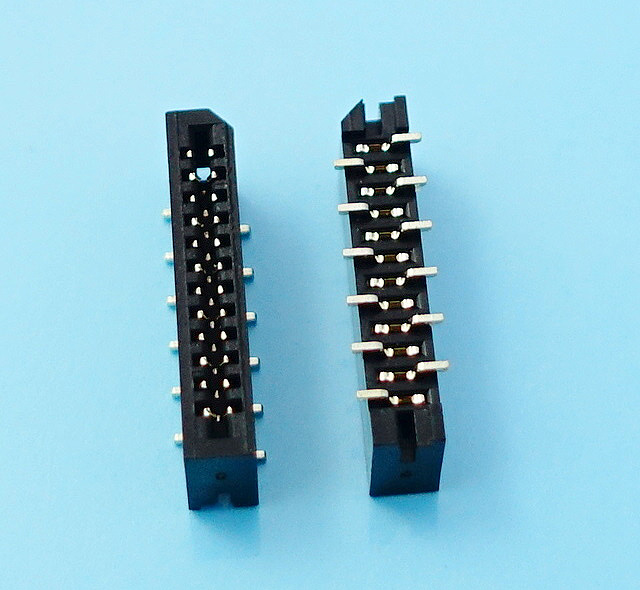

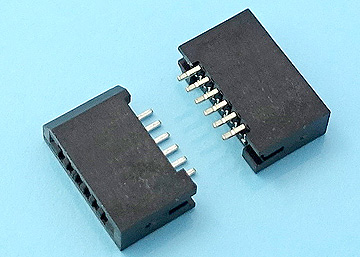

• LFPCK810DL-SR-XX-PT-X FPC 1.0mm H:2.8 NON-ZIF SMT R/A Dual Contact Type Connector

    LFPCK810DL-SR-XX-PT-X FPC 1.0mm H:2.8 NON-ZIF SMT R/A Dual Contact Type Connector

    SPECIFICATION:

    • Poles: 4~30.
    • Voltage rating:
      AC, DC, 200V(50HZ).
      AC, DC, 50V(200HZ).
    • Current rating:0.4A, AC/DC.
    • Withstand voltage :200V AC/minutes.
    • Working Temperature: -25°C ~ +85°C.
    • Insulation resistance: >500MΩ.
    • Contact resistance: <0.02Ω.
    • Terminal mtr'l: Phosphor Bronze.
    • Housing mtr'l: PA9T,UL94V-0.
    • Housing color: Black.

    　

    PDF
