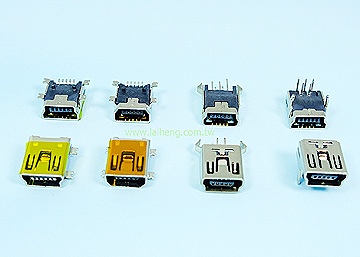

• Mini USB Series

    Mini USB Series

    • Function:A Type,B Type,AB Type
    • Body Option : Right Angle,DIP,SMT
    • No.Of Contacts:04,05,08,10,12,14,16
    • Type of Contacts :Female,Male
    • Inaulator Color:Black
      　

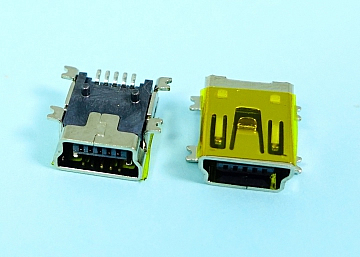

  • MINI USB B Type 5Pin Female SMT With Post

    LMNUB-22MBH051T120LBXXX MINI USB B Type 5Pin Female SMT With Post

    Specifications

    • HOUSING: HI-TEMP PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY, NICKEL PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA, TIN PLATED ON SOLDER TAIL
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~+85°C

    Inquiry Info. PDF

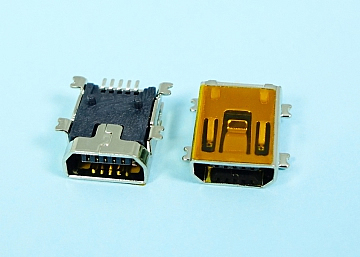

  • MINI USB A/B Type 5Pin Female SMT With Post &Mylar

    LMNUB-22MCH051T128L MINI USB A/B Type 5Pin Female SMT With Post &Mylar

    Specifications

    • HOUSING: LCP+30%G.F, UL94V-0,BLACK
    • SHELL: COPPER ALLOY, NICKEL PLATING
    • TERMINAL: COPPER ALLOY, NICKEL PLATED UNDER OVER ALL. GOLD PLATED ON CONTACT AREA, TIN PLATED ON SOLDER TAIL
    • MYLAR: POLYIMIDE TAPE
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~ +85°C

    Inquiry Info. PDF

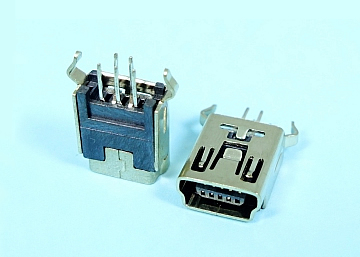

  • MINI USB B Type 5Pin Female Vertical (180ﾟ) DIP

    LMNUB-22MNH051T117L MINI USB B Type 5Pin Female Vertical (180ﾟ) DIP

    Specifications

    • HOUSING: HI-TEMP PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY, NICKEL PLATING TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA, TIN PLATED ON SOLDER TAIL
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~+85°C

    Inquiry Info. PDF

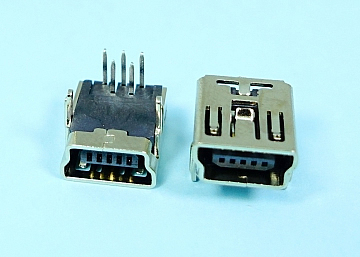

  • MINI USB B Type 5Pin Female Right Angle (90ﾟ) DIP

    LMNUB-22MHH051T137X MINI USB B Type 5Pin Female Right Angle (90ﾟ) DIP

    Specifications

    • HOUSING: HI-TEMP PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY OR SPCC, NICKEL PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA, TIN PLATED ON SOLDER TAIL
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~+85°C

    Inquiry Info. PDF

共計 4 項
