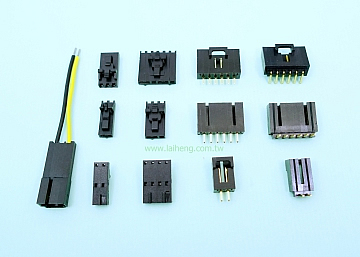

CD-IN254

Specifications Material: Base: Polyester 94V-0, PBT+30% glass-filled Contact: Brass, Gold-Plated Voltage Rating: 250V Current Rating: 3A Withstanding Voltage: 1000V AC/minute Insulation Resistance: 1000MΩ Min. Temperature Range: -25℃ ~ + 85℃ Contact Resistance: Initial value / 10mΩ max. After environmental testing/20mΩ max.
