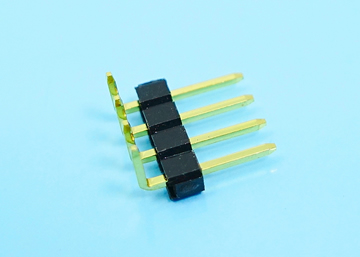

• LP/H254UGX a/c A b -1xXX 2.54mm Pin Header H:2.54 W:2.54 Single Row Up Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP/H254UGX a/c A b -2xXX 2.54mm Pin Header H:2.54 W:5.08 Dual Row Up Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP/H254UGN a/c C b -1xXX 2.54mm Pin Header H:1.5 W:2.54 Single Row Up Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP/H254UGN a/c C b -2xXX 2.54mm Pin Header H:1.5 W:5.08 Dual Row Up Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

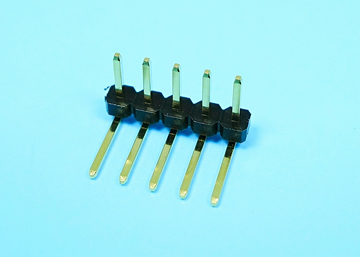

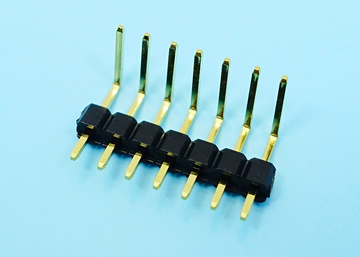

  • LP/H254RGX a A c/b -1xXX 2.54mm Pin Header H:2.54 W:2.54 Single Row Down Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

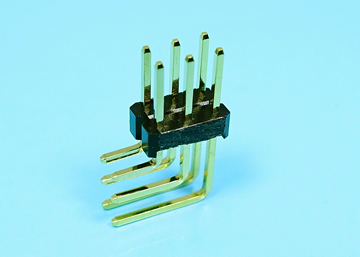

  • LP/H254RGX a A c/b -2xXX 2.54mm Pin Header H:2.54 W:5.08 Dual Row Down Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -40°C to +85°C (PBT), -55°Cto +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T or PBT
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP/H254RGP a A c/b -3xXX 2.54mm Pin Header H:2.5 W:7.5 Three Row Down Angle DIP Type

    Specifications

    • Contact Current Rating : 3 Amperes
    • Contact resistance : 20 mΩ Max
    • Insulation Resistance : 1000 MΩ Min.
    • Operating Temperature : -40°C to +105°C
    • Dielectric Withstanding Voltage : 600V AC RMS 60 SECONDS


    Material

    • Insulator : PBT, UL94V-0
    • Contact : Brass
    • Plating : All Gold or Tin

    Inquiry Info. PDF

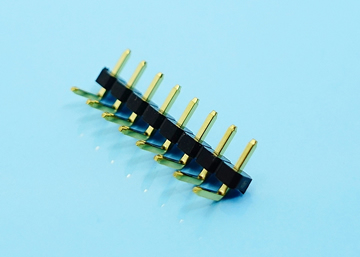

  • LP/H254RGN a B c/b -1xXX 2.54mm Pin Header H:1.7 W:2.54 Single Row Down Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP/H254RGN a B c/b -2xXX 2.54mm Pin Header H:1.7 W:5.08 Dual Row Down Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

  • LP/H254RGN a C c/b -1xXX 2.54mm Pin Header H:1.5 W:2.54 Single Row Down Angle DIP Type

    Specifications

    • Current rating : 3A
    • Withstanding voltage : 500V AC
    • Insulation resistance : 1000 Megohms Min.
    • Operating Temperature : -55°C to +105°C (NYLON 6T)


    Material

    • Contact : Coppery Alloy
    • Insulator : Polyester, UL94V-0, NYLON 6T
    • Plating : All Gold or Tin

    Inquiry Info. PDF

共計 15 項
