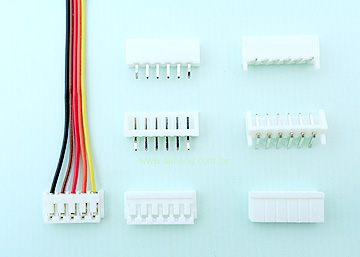

• EH 250 Series

    EH 250 Series

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC, DC
    • Temperature Range: -25℃ ~ + 85℃
    • Contact Resistance: 20mΩ / Max
    • Insulation Resistance: 1000MΩ / Min
    • Withstanding Voltage: 800V AC/Minute
    • Pin Material: Brass/ Tin-plated
    • Wafer Material: Glass-filled PBT, UL94V-0, natural
  • 2.5mm Pitch Single Row Wafer,180° DIP

    LW-EH250S-XX 2.5mm Pitch Single Row Wafer,180° DIP

    Specifications
    Electrical

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp.: -25°C ~ +85°C
    • Insulation Resistance: 1000MΩ/ min.
    • Dielectric Withstanding Voltage: 800V AC/ min.
    • Contact Resistance: 10mΩ/ max.


    Material

    • Terminal Material: Brass, Copper-Undercoated, Tin- plated
    • Material: Nylon 66, UL94V-0

    Inquiry Info. PDF

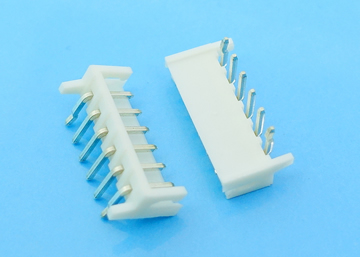

  • 2.5mm Pitch Single Row Wafer , 90° DIP

    LW-EH250R-XX 2.5mm Pitch Single Row Wafer , 90° DIP

    Specifications
    Electrical

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp.: -25°C ~ +85°C
    • Insulation Resistance: 1000MΩ/ min.
    • Dielectric Withstanding Voltage: 800V AC/ min.
    • Contact Resistance: 10mΩ/ max.


    Material

    • Terminal Material: Brass, Copper-Undercoated, Tin- plated
    • Material: Nylon 66, UL94V-0

    Inquiry Info. PDF

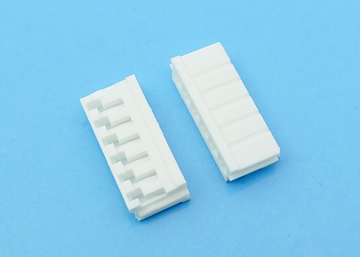

  • 2.5mm Pitch Single Row Crimp Terminal Housing

    LH-EH250-XX 2.5mm Pitch Single Row Crimp Terminal Housing

    Specifications

    • Current rating : 3A AC,DC
    • Voltage rating : 250V AC,DC
    • Temperature range : -25°C to +85 °C
    • Conctact resistance : 10mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute
    • Material : Nylon 66, UL94V-0

    Inquiry Info. PDF

共計 3 項
