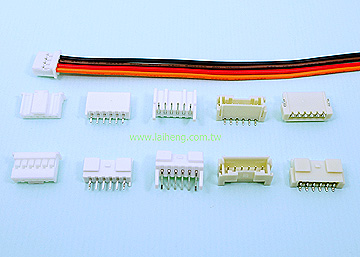

• PA 200 Series

    PA 200 Series

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstand Voltage:800V AC/Minute

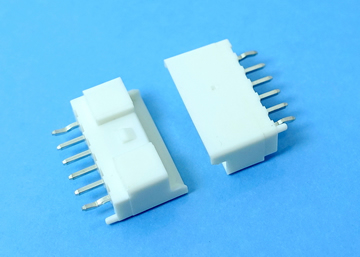

  • 2.0mm Pitch Single Row Wafer, 180° DIP

    LW-PA200S-XX-D 2.0mm Pitch Single Row Wafer, 180° DIP

    Specifications

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstand Voltage:800V AC/Minute
    • Pin Material: Brass/ Tin-plated
    • Wafer Material: Glass-filled PBT,UL94V-0,natural

    Inquiry Info. PDF

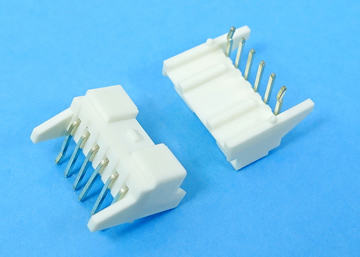

  • 2.0mm Pitch Single Row Wafer , 90°DIP

    LW-PA200R-XX-D 2.0mm Pitch Single Row Wafer , 90°DIP

    Specifications

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstand Voltage:800V AC/Minute
    • Pin Material: Brass/ Tin-plated
    • Wafer Material: Glass-filled PBT,UL94V-0,natural

    Inquiry Info. PDF

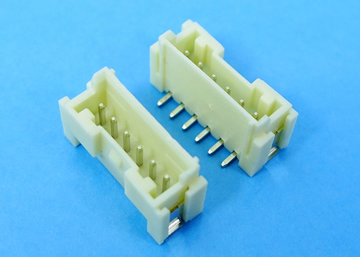

  • 2.0mm Pitch Single Row Wafer,180° SMT

    LW-PA200S-XX-S 2.0mm Pitch Single Row Wafer,180° SMT

    Specifications

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage:800V AC/Minute
    • Pin : Brass/ Tin-plated
    • Wafer Material: Nylon 6T,UL94V-0,natural
    • Solder tab:Brass/Tin-plated

    Inquiry Info. PDF

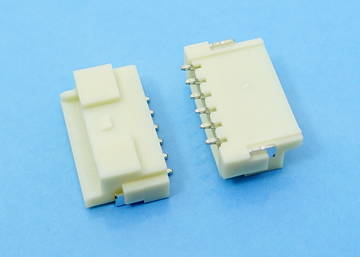

  • 2.0mm Pitch Single Row Wafer , 90° SMT

    LW-PA200R-XX-S 2.0mm Pitch Single Row Wafer , 90° SMT

    Specifications

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage:800V AC/Minute
    • Pin : Brass/ Tin-plated
    • Wafer Material: Nylon 6T,UL94V-0,natural
    • Solder tab:Brass/Tin-plated

    Inquiry Info. PDF

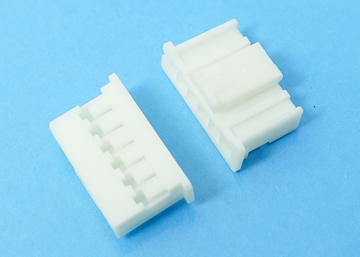

  • 2.0mm Pitch Single Row Crimp Terminal Housing

    LH-PA200-XX 2.0mm Pitch Single Row Crimp Terminal Housing

    Specifications

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage:800V AC/Minute
    • Material: Nylon 66 UL 94V-0,natural
    • Available number of circuits:2 to 15 pin

    Inquiry Info. PDF

共計 5 項
