• ZH150 series

    • Current Rating: 0.7A AC, DC (AWG #28).
    • Voltage Rating: 50V AC, DC.
    • Contact Resistance: Initial value / 20mΩ Max.
    • After environmental testing / 30mΩ Max.
    • Dielectric Withstanding Voltage: 500V AC / minute.
    • Ambient Temperature Range: -25℃ ~ 85℃.
      (including temperature rise)

  • LW-ZH150S-XX-D 1.5mm Pitch Single Row Wafer, 180° DIP

    Inquiry Info.

  • LW-ZH150R-XX-D 1.5mm Pitch Single Row Wafer , 90° DIP

    Inquiry Info.

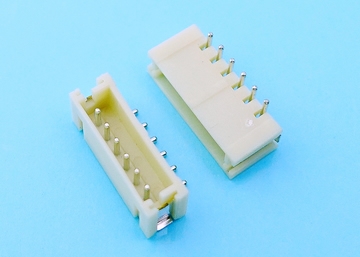

  • 1.5mm Pitch Single Row Wafer, 180° SMT

    LW-ZH150S-XX-SX 1.5mm Pitch Single Row Wafer, 180° SMT

    Specifications

    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25°C ~ +85°C.
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Material: Pin-Brass/Tin-plated, Base-Nylon 9T, UL94V-0

    Inquiry Info. PDF

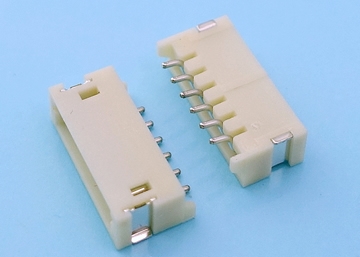

  • 1.5mm Pitch Single Row Wafer , 90° SMT

    LW-ZH150R-XX-SX 1.5mm Pitch Single Row Wafer , 90° SMT

    Specifications

    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25°C ~ +85°C.
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Material: Pin-Brass/Tin-plated, Base-Nylon 9T, UL94V-0

    Inquiry Info. PDF

  • LH-ZH150-XX 1.5mm Pitch Single Row Crimp Terminal Housing

    Inquiry Info.

共計 5 項
